ICON 2000-06 Toyota Tundra, 0-2.5″ Lift, Stage 3 Suspension System

Description

ICON Vehicle Dynamics Toyota Tundra Stage 3 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers��� primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5��� coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 0-2.5��� of lift allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 VS Piggyback Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2000 – 2006 Toyota Tundra Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

��

Features & Benefits:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from 0-2.5″ of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 100% Bolt-on system – no drilling, cutting, or welding necessary for install

��

NOTES:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75��� Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.00��� Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.00��� Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Ships in multiple boxes

��

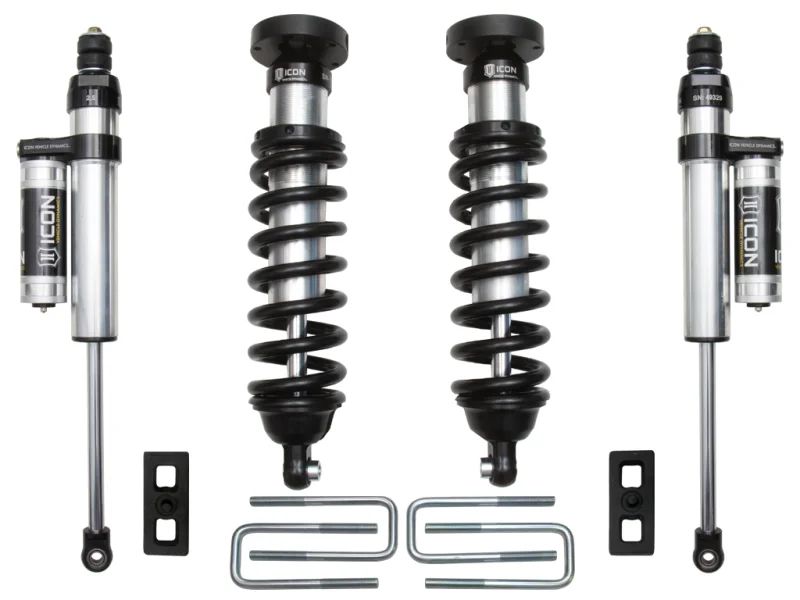

Components:

• 58620 (QTY: 1) | 00-06 TUNDRA/01-07 SEQUOIA 2.5 VS IR COILOVER KIT
• 51001 (QTY: 1) | 1″ CAST LIFT BLOCK KIT
• 52100 (QTY: 1) | TOYOTA REAR 9.5″ U-BOLT KIT
• 57715P (QTY: 1) | 00-06 TUNDRA REAR 2.5 VS PB PAIR

��

ICON 2000-06 Toyota Tundra, 0-2.5″ Lift, Stage 3 Suspension System | SKU: K53033
