Description

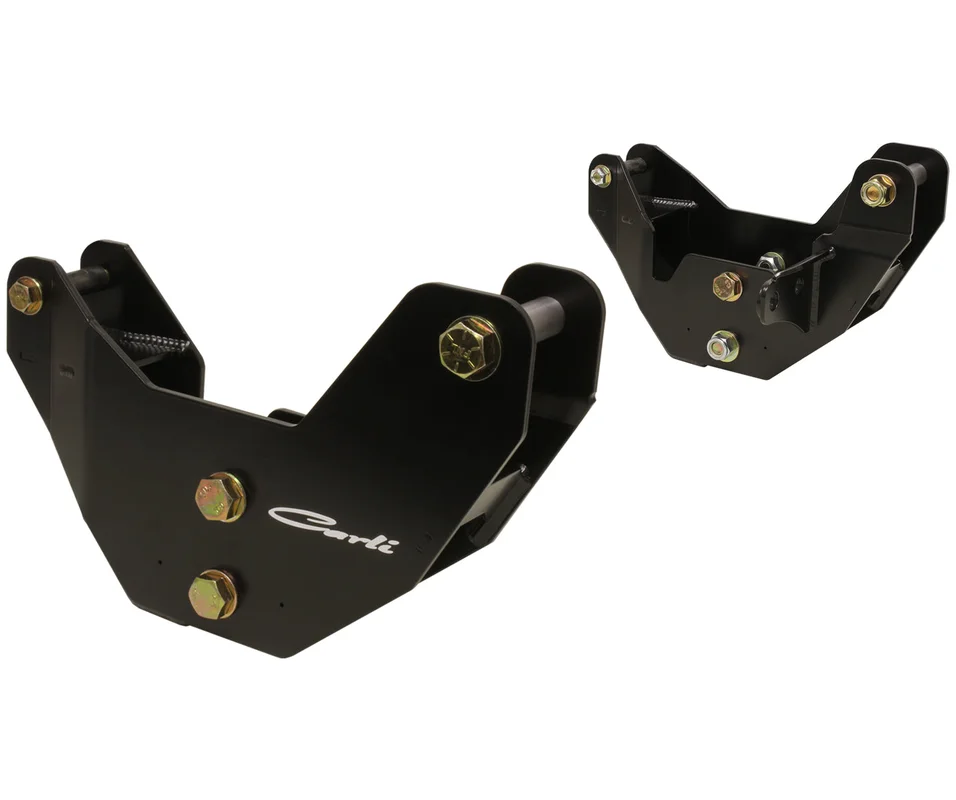

One of the most important components to be included in our systems, Carli’sRadius Arm Drops maintain your vehicle’s critical caster and coil geometry.RAM’s new suspension setup has proven itself to be quite complex in its idiosyncrasies, andas a result we have engineered a simple solution to overcome the less-desired nuances of thenew trucks. Using Chrysler CAD files, we developed a simple-to-install Drop that is trulybolt-on with no welding required. Due to their unique design, the vehicle chassis andpowertrain can be serviced or replaced without removal of the Radius Arm Drops.
Constructed out of 1/4″ Cold Rolled Steel and CNC formed, these precisioncomponents rotate your axle back to OEM settings, locating your lower coil perch angles wherethey were intentionally designed. This also alleviates the coil bowing that is encounteredwhen you lift the front and don’t address the coil bow issue—something that will never betruly solved with a “coil only” approach.
Carli Radius Arm Drops for 2013+ RAM trucks will keep your investment driving like the dayit left the showroom floor.
- Maintains critical geometries with 2.5–4″ Front Lift
- Heavy-Duty 1/4″ Cold Rolled Steel Construction
- Bolt-On Installation, No Welding Required
- Requires: CS-DCM-20-HK to fit 2020+ Rams (NOT Included)
- Fitment: 2014–22 Ram 2500, 4×4
- Fitment: 2013–22 Ram 3500, 4×4
